Key Features

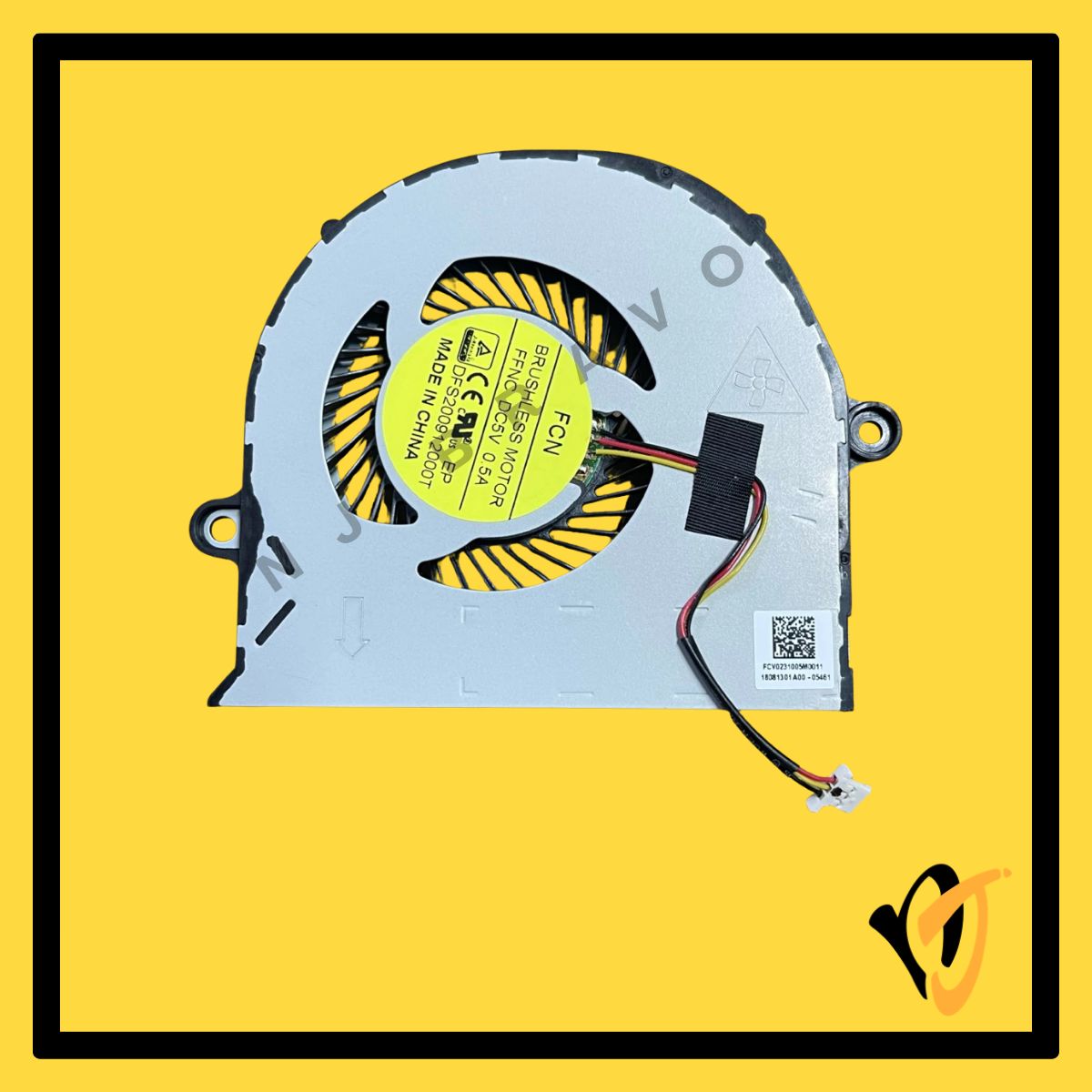

✅ Fits Acer Aspire E5-47X, E5-57X, F5-57X, V3 Series & TravelMate P248/P249/P258 Series
✅ Direct OEM replacement — no modifications or soldering required
✅ DC 5V / 0.5A power rating — matched to original Acer specs for safe, stable operation
✅ 3-Pin header connector with tachometer signal wire for fan speed monitoring
✅ 50mm blade diameter — optimized airflow for compact laptop heatsink assemblies
✅ Temperature-controlled RPM — whisper-quiet under normal loads
✅ Two variants available — bare fan (FFNC/FEHD) or with heatsink pre-installed (FFRU)
✅ Genuine Forcecon (FCN) — same fan supplied by Acer as original replacement parts

───

Technical Specifications

Brand ············· Forcecon (FCN)
Part Number ······· DFS561405FL0T
Alternate P/N ····· DC28000ERF0 / DC28000GUF0 / EF75070S1-C120-G99 / 23.MLNN7.001 / 23.GFHN7.001
Voltage ··········· DC 5V
Current ··········· 0.5A
Max Power ········· 2.5W
Connector Type ···· 3-Pin Header (with tachometer signal)
Blade Size ········ 50mm
Fan Type ··········· Single axial cooling fan
Heatsink ·········· Available bare or pre-installed (FFRU variant)
Item Condition ···· New

───

Compatible Models

Acer Aspire E5 Series:
• E5-411 / E5-421 / E5-422 / E5-431 / E5-432 / E5-471 / E5-471G / E5-471P / E5-473G / E5-475G / E5-522 / E5-532 / E5-532G / E5-552 / E5-553 / E5-563B / E5-571 / E5-571G / E5-571P / E5-572 / E5-572G / E5-573 / E5-573G / E5-573TG / E5-574G / E5-574T / E5-575 / E5-575G / E5-774

Acer Aspire F5 Series:
• F5-571 / F5-571G / F5-571T / F5-572 / F5-572G / F5-573 / F5-573G

Acer Aspire V3 Series:
• V3-472G / V3-472P / V3-572G / V3-575 / V3-575G / V3-575T / V3-575TG / V3-574 / V3-574G

Acer TravelMate P2 Series:
• P246-M / P246-MG / P248-M / P248-MG / P249-M / P249-MG / P258-M / P258-MG

⚠️ Compatible Models Disclaimer: Buyers should always reconfirm that the part number on the fan label matches DFS561405FL0T before purchasing. Different suffix variants (FFNC / FFRU / FJ6G) indicate different heatsink configurations.

───

Package Contents

• 1× Acer CPU Cooling Fan (DFS561405FL0T) — available as bare fan or with heatsink pre-installed (select variant at purchase)
• Screws and thermal paste not included

───

Warranty

• 6-month replacement warranty
• Covers manufacturing defects and premature failure under normal use
• Physical damage or improper installation voids warranty

───

Additional Notes

• Remove your existing fan and verify the part label before ordering. Suffix differences (FFNC vs FFRU) = different heatsink configurations or vendor batches.
• The 3-pin header is keyed — only seats in the correct orientation. Do not force it. Fan works on 2 pins for testing but speed monitoring requires all 3 connected.
• Clean old thermal compound off CPU/GPU die and apply fresh thermal paste (not included) for best heat transfer after installation.
